 Software

multi

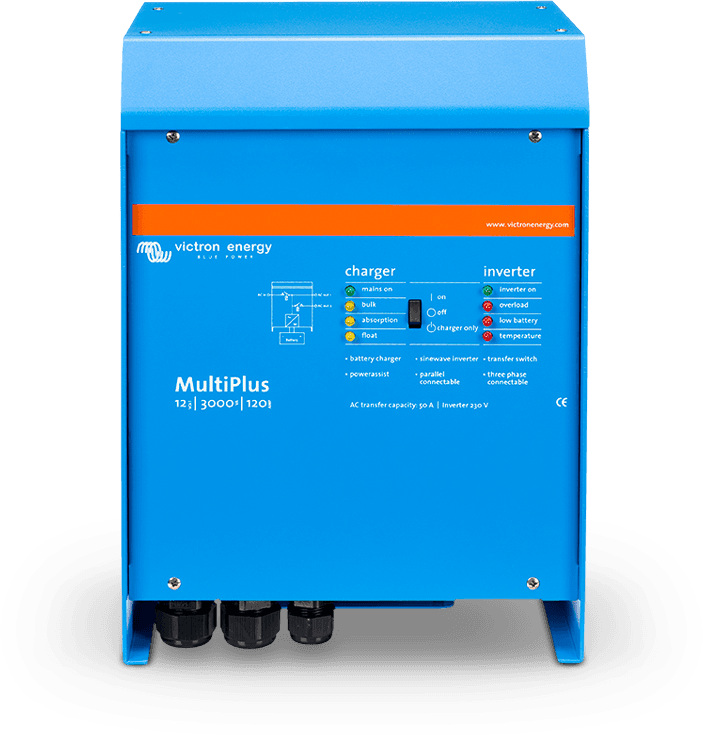

VE Configuration tools for VE.Bus Products



Installation package for large systems/extended features.
This package contains:
- VEConfigure 3 (v9004169)
- VE.Bus Quick Configure (v9010130) - For installations up to 3 Multis
- VE.Bus System Configurator (v9009123) - For larger installations
- VEFlash(v9005139) - Software tool to update VE.Bus products

VE Configure Tools


To connect your computer to a VE.Bus product (Multis, Quattros and Inverters), you need an MK2-USB (ASS030130000) and an RJ45 UTP cable (ASS030054xxx and ASS030065xxx).





USB driver installation program for MK2 USB. To install the MK2-USB driver on a computer without an internet connection, first download this program and run it, and only afterwards connect the MK2-USB to your computer for the first time.

MK2 USB drivers (v2.08.24)


More documentation:

A guide to VE.Bus Quick Configure
A guide to VEConfigure
VEConfigure in Simple Mode
VE.Bus firmware versions explained
VEConfigure 3 manuals


bmv

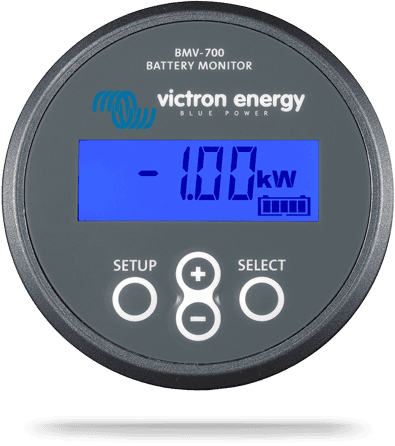

BMV Reader



BMV Battery monitor software.
For models BMV-600 series and 700 series.

BMV Reader (v1.4.2)

Manual: Software BMV-602

VE.Direct USB drivers




Mobile apps





Victron P&A app*

For Android users: are you unable to open the apps in the app store? Download the APK files.

The Victron P&A app allows you to search the current Victron product listing, including stock holding, prices and availability.

Download for Android
Download for iPhone



* Please note: this app requires an active Victron E-Order login.



APK file Victron P&A app

Victron VRM app



Monitor and manage your Victron Energy system. Login with your VRM account, and see all your sites in a list.

Download for Android
Download for iPhone



APK file Victron VRM app

Victron Toolkit app


Calculate cable size and voltage drop, understand all LED codes from Victron Energy Multi and Quattro inverter/chargers and calculate output power derating for inverters and chargers for the expected ambient temperature.

Download app for Android
Download app for iPhone



APK file Victron Toolkit app



Data communication with Victron Energy products


Many of our customers integrate our products into their own systems, using data communication protocols. There are several options to establish data communication. This white paper explains the possibilities.
Data communication with Victron Energy products


  impulse

Impulse PC software


Impulse PC software Impulse PC software (v5.34)


  vgr

Victron Global Remote Configuration tool



VGR Configure
For both the Victron Global Remote 2 and the Victron Ethernet Remote. Requires VGR firmware 2.0 or higher.

VGR Configure (v1.9.0)



USB Drivers
Download and install these separately. They are not included with VGR Configure. The USB Driver Installer requires java to be installed on your computer. Download it here: http://www.java.com/download/.

VGR USB Driver Installer


VE power setup

VE Power Setup



The new VE Power Setup tool can update firmware for Victron products that are updateable via a VE.Direct or VE.Can communication. These are:

  • BlueSolar Chargers 70/15, 75/15, 100/15, 100/30, 150/35, 75/50, 100/50 and 150/70
  • BMV-700 series
  • Lynx Shunt VE.Can
  • All four Skylla-i battery chargers
  • All our different VE.Can and NMEA2000 interfaces
  • Ion Control

To connect your computer to those products, you need either the VE.Direct to USB interface (ASS030530000), or the CANUSB interface (ASS030532000). As an alternative to the CANUSB, it is also possible to use the Actisense NGT-1, Peak Systems PCAN or a Kvaser USB-Canbus product.


Refer to the 'Need help connecting?' button in VE Power Setup for detailed instructions on all Victron products.


VE Power Setup replaces vup.exe and dup.exe

VE Power Setup (v3.0)

VE.Direct USB drivers

CANUSB drivers


   mpptcalc

MPPT charge controllers


MPPT Calculator: an excel sheet to match solar modules to MPPT charge controllers.
MPPT Calculator


mpptprefs: Configure settings of MPPT charge controllers with a VE.Direct comm. port: 75/15, 100/15, 100/30, 75/50, 100/50 and the 150/35.

mpptprefs v1.10


mpptprefs manual






   agm

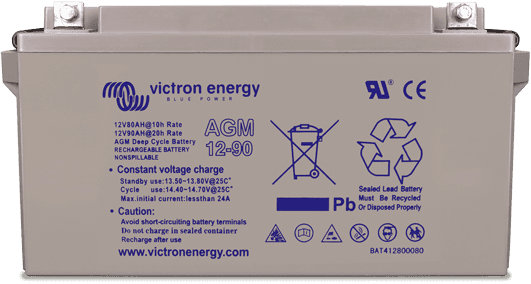

Peukert Calculator


Helps you with your Peukerts coefficient calculations
Peukert Calculator


 Teamviewer

TeamViewer QuickSupport



Download and run this program when instructed by your Victron Energy contact. By using this software, you accept to show your desktop to a Victron Energy support engineer.

TeamViewer QSC (v8.0.17396 QSC)






Old products



Software for old devices



VEConfigure for devices with software versions
14xxxxx and 17xx000 - 17xx129

VEConfigure.exe (v9003120)

Datfile (v20050703)

BMV501 Link Software

BMV Link Software

Installation Instructions


 gridinverter

VE Data Control Setup



Software to configure, and also log data from the BlueSolar Grid Inverters



VE Data Control Setup (v2.03)
